WHITEBOARD CAMERA FOR VIDEO CONFERENCING ROOMS
Designed for whiteboard sharing in the modern workplace, Logitech Scribe broadcasts content on dry-erase boards into video meetings with outstanding clarity. Now, even remote participants can have the best seat at the table.

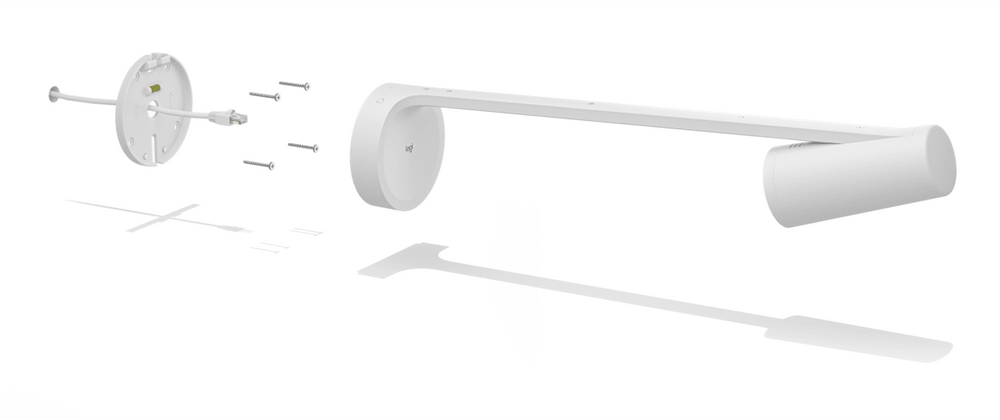

With a clean wall-mounted design and thoughtful cable management, Scribe installs elegantly and out of the way of meeting collaboration. Together with the whiteboard content camera, Scribe includes a wireless share button, mounting components, power supply, and category cables for deployment at scale.
PERFECT VIEWS, REMOTE OR IN THE ROOM
Effortlessly share whiteboards into video meetings with Logitech Scribe, an AI-powered whiteboard camera for Google Meet Rooms, and other leading video conferencing services.
SPECIFICATIONS
DIMENSIONS

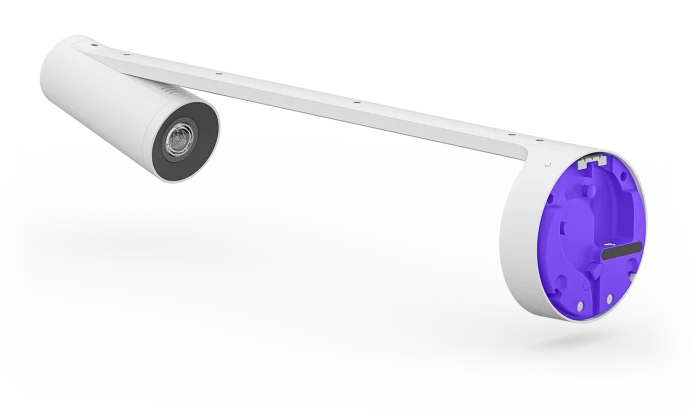

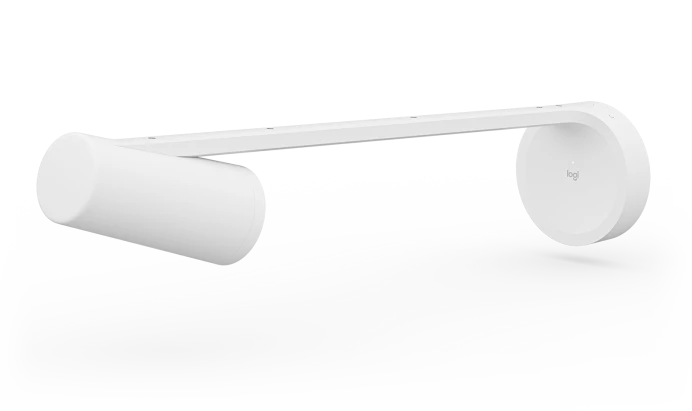

Camera
- Height: 5.87 in (149 mm)
- Width: 4.69 in (119 mm)
- Depth: 22.56 in (573 mm)
- Weight: 2.43 lb (1.1 kg)

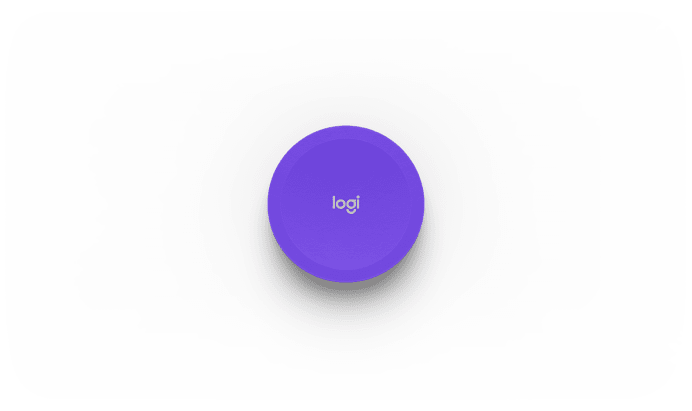

Share Button
- Height: 0.50 in (12.7 mm)
- Diameter: 2.83 in (71.8 mm)
- Weight: 3.81 oz (108 g)
Power Injector
- Height: 3.58 in (91 mm)
- Width: 2.37 in (60.2 mm)
- Depth: 1.43 in (36.3 mm)
Dongle Transceiver
- Height: 0.89 in (22.5 mm)
- Width: 1.22 in (31 mm)
- Depth: 3.30 in (83.7 mm)
- Cable length: 1.64 ft (500 mm)
Included Cabling (x2)
- Length: 5 m (16.4 ft)
TECHNICAL SPECIFICATIONS
Certifications & Compatibility
Integrates with Microsoft Teams Rooms on Windows, Google Meet Rooms, and with Zoom Rooms as a whiteboard content camera.
See www.logitech.com/support/scribe-compatibility for pending and granted certifications and compatibility updates.
Compatible with virtually any video conferencing application as a USB-connected camera.
Camera
- Output Resolution: 1080p at 15 fps
- Built-In AI: Broadcasts AI-enhanced image stream into video meetings
Share Button
- Power: 2 x CR2032 battery
- Adhesive-backed mounting
- Share button support may vary by video conferencing service provider.
- See www.logitech.com/support/scribe-compatibility for the latest information.
Interfaces
- Camera: Category Cable Port
- Share Button: Bluetooth® Low Energy
Power Cables
- Power supply: 100-240V auto-switching power supply with international adaptor set
- Cable Type: Cat5e SF/UTP AWG26 or higher
COMPATIBILITY
Whiteboard
-Maximum Whiteboard Dimensions
- Height: 4 ft (1.2 m)
- Width: 5.9 ft (1.8 m)
Customer-Supplied Cabling
- Cable Type: Cat5e or higher [up to 115.83 ft (35 meters) in total length]

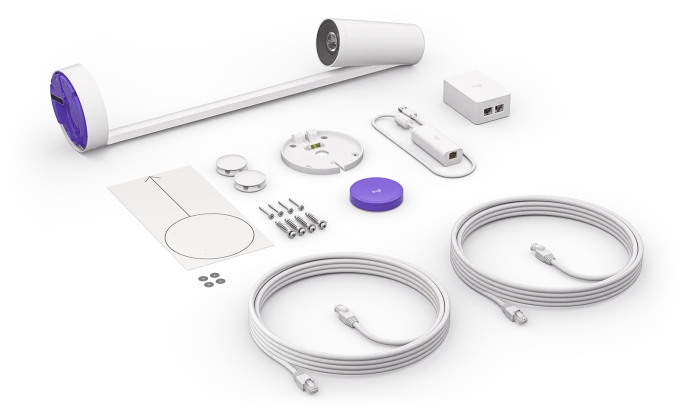

PACKAGE CONTENTS
- Camera
- Share Button
- Dongle Transceiver
- 100-240v Power Supply with International Adaptor Set
- 16.4 ft (5.0 m) Cat5e Cables x 2
- Cable Clips x 2
- Camera Installation Kit
- Documentation
WARRANTY INFORMATION
Standard: 2-year limited hardware warranty included.
DIMENSIONS
Camera
- Height: 5.87 in (149 mm)
- Width: 4.69 in (119 mm)
- Depth: 22.56 in (573 mm)
- Weight: 2.43 lb (1.1 kg)
Share Button
- Height: 0.50 in (12.7 mm)
- Diameter: 2.83 in (71.8 mm)
- Weight: 3.81 oz (108 g)
Power Injector
- Height: 3.58 in (91 mm)
- Width: 2.37 in (60.2 mm)
- Depth: 1.43 in (36.3 mm)
Dongle Transceiver
- Height: 0.89 in (22.5 mm)
- Width: 1.22 in (31 mm)
- Depth: 3.30 in (83.7 mm)
- Cable length: 1.64 ft (500 mm)
Included Cabling (x2)
- Length: 5 m (16.4 ft)
TECHNICAL SPECIFICATIONS
Certifications & Compatibility
Integrates with Microsoft Teams Rooms on Windows, Google Meet Rooms, and with Zoom Rooms as a whiteboard content camera.
See www.logitech.com/support/scribe-compatibility for pending and granted certifications and compatibility updates.
Compatible with virtually any video conferencing application as a USB-connected camera.
Camera
- Output Resolution: 1080p at 15 fps
- Built-In AI: Broadcasts AI-enhanced image stream into video meetings
Share Button
- Power: 2 x CR2032 battery
- Adhesive-backed mounting
- Share button support may vary by video conferencing service provider.
- See www.logitech.com/support/scribe-compatibility for the latest information.
Interfaces
- Camera: Category Cable Port
- Share Button: Bluetooth® Low Energy
Power Cables
- Power supply: 100-240V auto-switching power supply with international adaptor set
- Cable Type: Cat5e SF/UTP AWG26 or higher
COMPATIBILITY
Whiteboard
-Maximum Whiteboard Dimensions
- Height: 4 ft (1.2 m)
- Width: 5.9 ft (1.8 m)
Customer-Supplied Cabling
- Cable Type: Cat5e or higher [up to 115.83 ft (35 meters) in total length]
PACKAGE CONTENTS
- Camera
- Share Button
- Dongle Transceiver
- 100-240v Power Supply with International Adaptor Set
- 16.4 ft (5.0 m) Cat5e Cables x 2
- Cable Clips x 2
- Camera Installation Kit
- Documentation
WARRANTY INFORMATION
Standard: 2-year limited hardware warranty included.
